PPS-24-Briscala

Detailed Design

DSL

The DSL uses a Builder pattern to generate a FullEngineModel. Specifically, GameDSL understands the instructions given in input and uses them accordingly to enrich an internal GameBuilder, which will then produce the model used during gameplay. To make the DSL syntax more intuitive and fluent, GameDSL uses SyntacticSugar to define certain fixed keywords and SyntacticSugarBuilder to handle longer and more complex instructions.

Engine

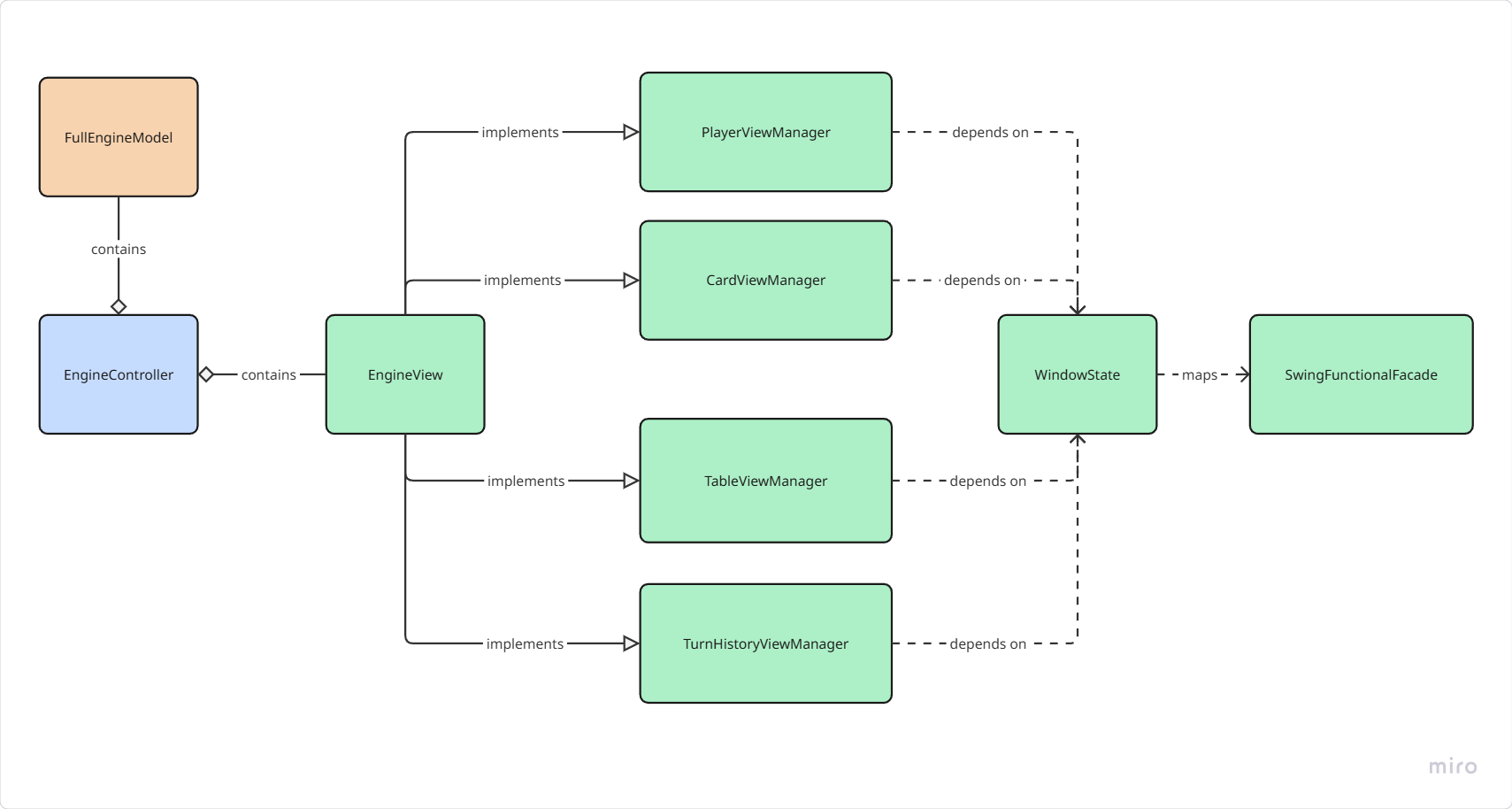

The engine is structured around the Model-View-Controller (MVC) pattern, which separates the application into three interconnected components.

• EngineController manages the game flow between the main model FullEngineModel and the main view EngineView.
• EngineView handles the user interface, it initializes the view components inherited as mixins.
• PlayerViewManager is a mixin responsible for adding players to the main view, specifically managing their spatial positioning.
• CardViewManager manages the display of cards in the players’ hands, including methods to interact with the cards.
• TableViewManager manages the display of the game table, including the cards played during the current turn.
• TurnHistoryManager holds the history of turns played, allowing the user to review past turn winners.
• WindowState maps SwingUtilityFacade in order to expose Swing methods in a functional manner.

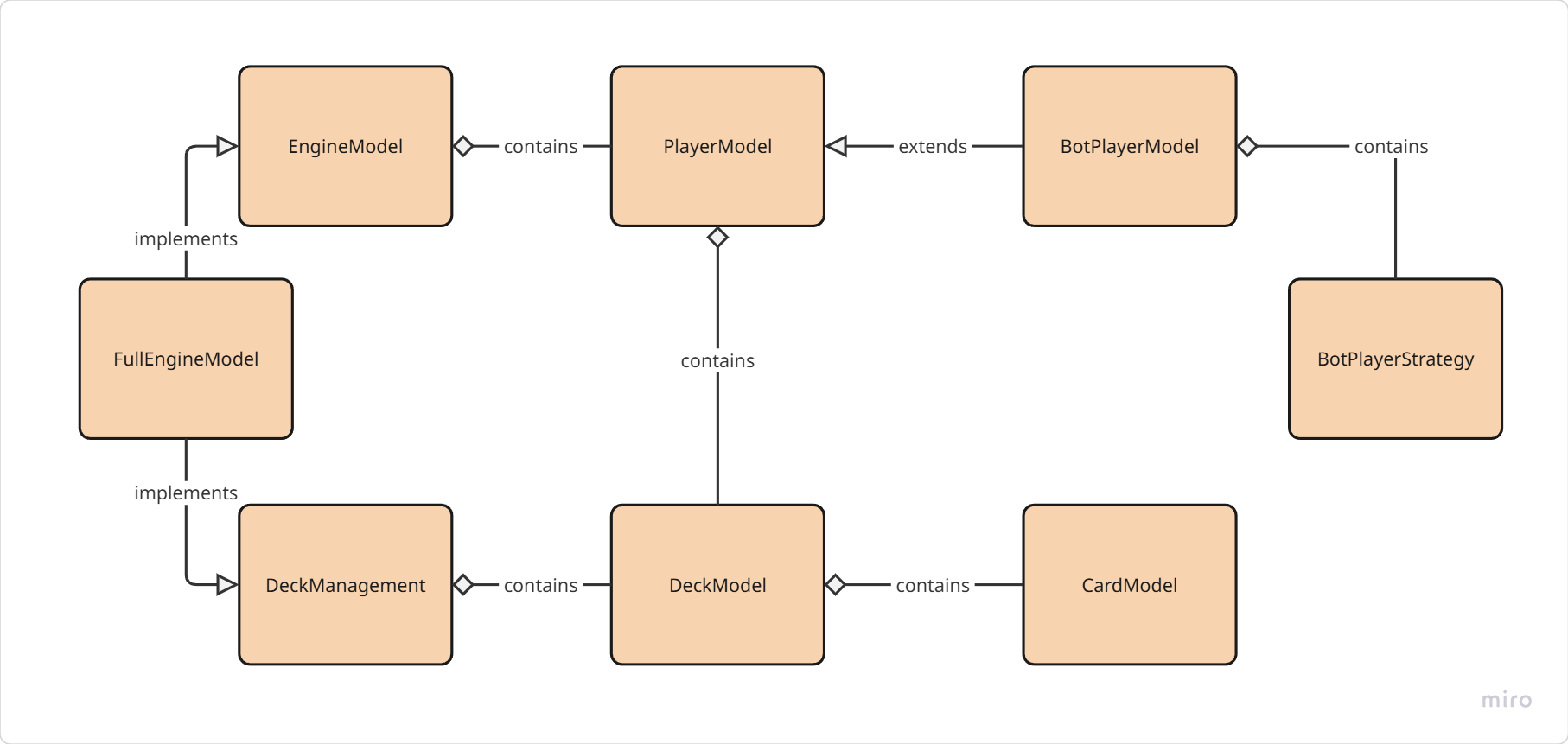

• FullEngineModel implements the EngineModel trait which defines the core game logic and rules. It also provides methods to interact with the deck of cards used in the game via the mixin DeckManagement.
• DeckManagement contains a DeckModel that contains the cards used in the game, modeled as a collection of CardModel.
• PlayerModel represents the players in the game and provides methods to interact with the cards in their hand, which is modeled as a DeckModel.
• BotPlayerModel extends PlayerModel and provides additional methods to let the bot play autonomously following a set strategy.

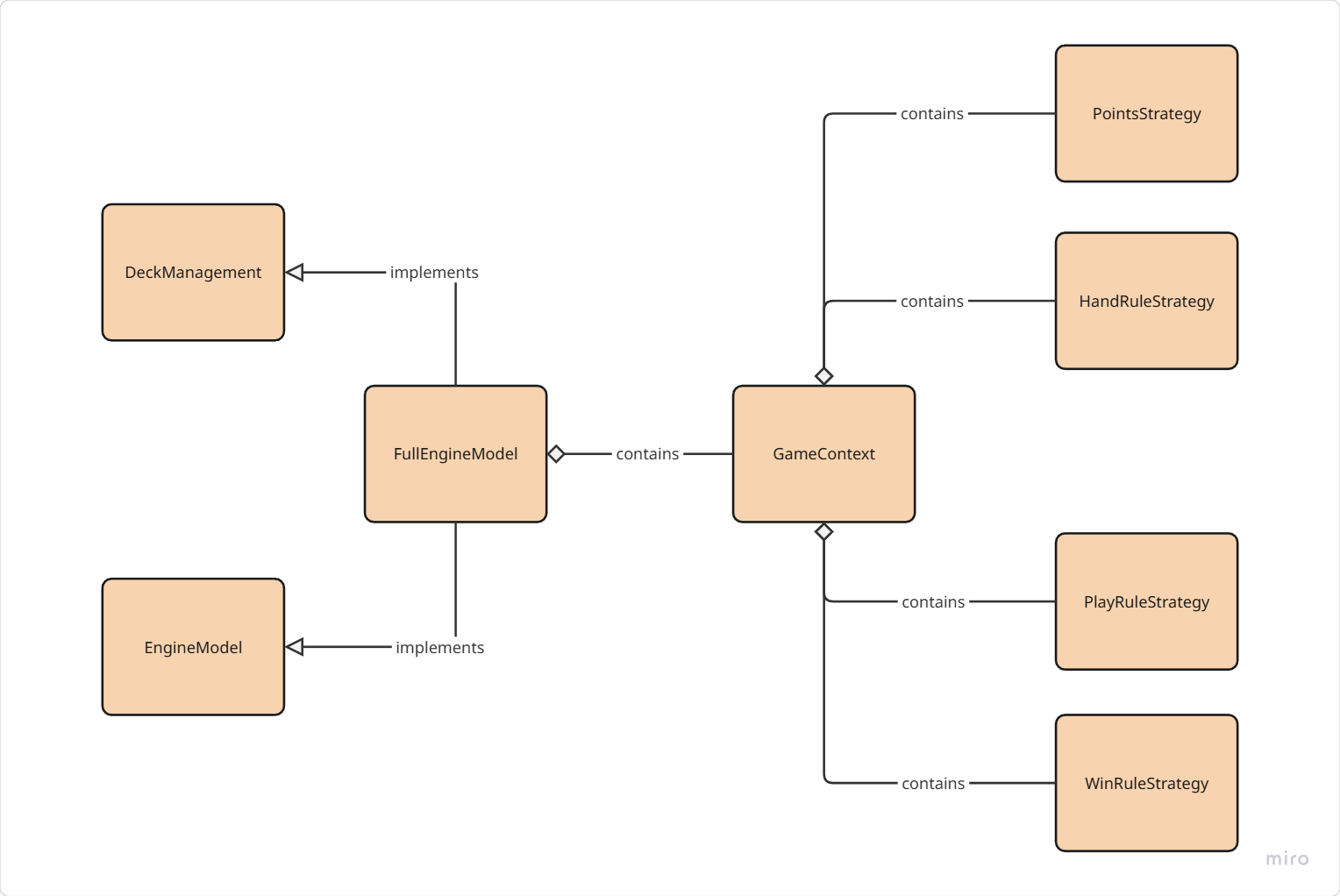

FullEngineModel only has methods to change the game state, which is represented by GameContext

• GameContext contains information about the current turn and the rules of the game, modeled as strategies.
• HandRuleStrategy is a strategy that defines the rules for playing cards from the hand.
• PlayRuleStrategy defines the rules for winning the turn (based on the cards played, which player has won).
• PointStrategy defines the correlations between cards and points (how many points is a card worth)
• WinRuleStrategy defines the rules for winning the game after the last turn is played.
